What Are Telescopic Slides? The Ultimate Guide to Types, Capacities, and Applications

Telescopic slides are commonly used linear motion components in industrial equipment, medical storage, and specialty vehicles. Compared to standard slides, they offer higher load capacity and vibration stability, helping maintain smooth movement during repeated opening and closing cycles. This article provides an overview of the types, safety mechanisms, load standards, and applications of telescopic slides in various industrial environments, helping readers choose the right telescopic slides to enhance equipment operational efficiency and safety.

What Makes Them Unique? Key Features and Benefits

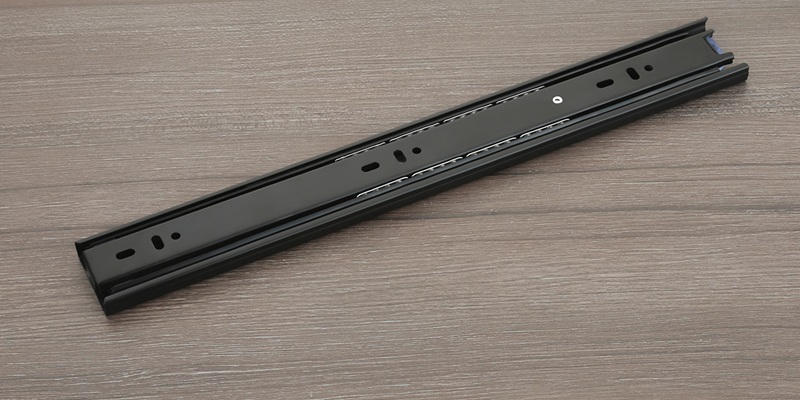

Telescopic slides primarily consist of multiple metal rail sections with internal ball bearings that ensure smooth movement during extension. While linear slides are mainly used for straight-line motion on a single plane, telescopic slides are designed to support the weight of drawers or equipment in a cantilevered fashion, making them suitable for storage applications requiring frequent opening and closing. Additionally, telescopic slides typically feature longer travel and higher extension rates, enabling a greater extension range to meet diverse industrial and storage needs.

Interlocking and Anti-Tilt Systems

In large medical cabinets or heavy-duty tool chests, especially mobile equipment with high-density drawer designs, pulling out multiple drawers filled with heavy items at the same time can cause the cabinet to tip over due to the forward shift of the center of gravity. To prevent such industrial accidents, telescopic slides can be equipped with an inter-locking system. For example, Sun Chain's Inter-locking series features a mechanism that restricts operators to pull out only one drawer at a time. When one drawer is extended, the others are automatically locked until that drawer is fully pushed back into place, at which point the next drawer can be opened.

High Vibration Resistance and Stability

In high-vibration environments such as moving vehicles, the slides within equipment must feature anti-slide-out designs to prevent drawers from accidentally sliding out. Sun Chain's L76131 extra heavy-duty slide has passed a random vibration test in accordance with IEC 60068-2-64. This test verifies that the slides maintain structural integrity under long-term vibration conditions, helping reduce the risk of fastener loosening, drawer rebound, or structural fatigue in vehicle-mounted equipment.
〈Extended Reading: Top Mount Drawer Slides: Design, Installation, and Maintenance Guide〉

High-Performance Telescopic Slides by Sun Chain, Precision Engineering for Heavy-Duty Applications

Sun Chain focuses on developing high-performance telescopic slides, providing durable and high-precision hardware solutions for heavy-load requirements and harsh environments.

TUMA Extra Heavy Duty Series

TUMA is Sun Chain's heavy-duty slide brand, with over 40 years of manufacturing and design experience in Taiwan. The brand focuses on producing industrial-grade extra heavy-duty slides with robust structures suitable for industrial storage systems, specialty vehicle modifications, and heavy automation equipment, capable of withstanding extreme loads over long periods without deformation.
〈Extended Reading: The Ultimate Guide to Heavy-Duty Drawer Slides: Engineering Strength for High-Capacity Needs〉

Award-Winning & International Certifications

Sun Chain holds ISO 9001 quality management certification, and its self-developed 150%-travel heavy-duty slides won the 2015 Taiwan Excellence Award. Furthermore, relevant product lines comply with the EU's RoHS and REACH environmental standards. For industrial equipment and medical devices to be exported to the European and American markets, compliance with REACH and RoHS is typically a basic threshold for procurement.
〈Extended Reading: How Locking Drawer Slides Improve Safety in Industrial Systems〉

Load Capacity of Telescopic Slides

When choosing telescopic slides, load capacity is the most direct consideration. Sun Chain offers a wide range of load options from medium to extra heavy-duty.

Medium to Heavy Duty Capacity

The load range for general medium-to-heavy-duty ball bearing slides is approximately 30kg and 110kg, but the actual load capacity will still vary depending on the length of the slide and installation conditions (such as side-mount or bottom-mount). This load range is suitable for most office equipment, server racks in data centers, and light-duty industrial tool cabinets. Sun Chain provides a variety of medium-to-heavy-duty slides to meet the needs of these basic industrial applications.

Extra-Heavy-Duty Capacity Up to 500 kg

For extreme load requirements, extra-heavy-duty telescopic slides are the ideal solution. Sun Chain offers several flagship models, such as the L76120 with a 300kg load capacity, the UC753 with up to 350kg, and the UB752 which can handle up to 500kg. These products typically use thickened steel and reinforced ball bearing structures to ensure smooth extension even under full load.

Telescopic Slides Extension Types and Materials

150% Over-travel & Two-way Extension

When internal cabinet depth is limited but equipment needs to be fully pulled out for access (such as server extraction or medical equipment maintenance), over-travel slides with up to 150% extension can be selected, such as Sun Chain's UD754. Another design is two-way Extension, such as the UD728, which allows drawers to be pulled out from both the front and back of the cabinet. This design is often used in assembly line feeding (loading on one side, unloading on the other) and is also ideal for specialized workstations that require material access from the rear space.
〈Extended Reading: Heavy-Duty Tool Box Drawer Slides: A Technical Guide to Industrial Applications and Specifications〉

High-Strength Steel & Stainless Steel

Material selection plays an important role in long-term durability and corrosion resistance. Sun Chain uses high-strength cold-drawn steel to manufacture extra heavy-duty slides, ensuring a sturdy structure when carrying heavy loads. For applications in humid environments, cleanrooms, or specialized settings (such as food processing or medical facilities), corrosion-resistant stainless steel can be chosen. Standard steel slides also undergo eco-friendly zinc plating for rust prevention, enhancing surface oxidation resistance.
〈Extended Reading: The Strategic Edge of Two-Way Drawer Slides: Beyond Conventional Storage〉

Common Applications for Telescopic Slides

Tactical Vehicle & Van Storage

Mobile equipment requires telescopic slides with excellent shock resistance and secure fixation. Telescopic slides are widely used in special vehicle modifications, such as equipment trays on fire trucks, storage cabinets for drone support vehicles, trunk storage systems for 4x4 off-road vehicles, and emergency equipment racks in ambulances. These applications all require the slides to remain locked when the vehicle is traveling over bumpy terrain to ensure that internal items do not fall out.
〈Extended Reading: Maximize Your Cargo Space: The Ultimate Guide to Van Shelving Solutions〉

Railway Equipment, ATMs, and Toolboxes

Telescopic slides are also widely used in equipment requiring high-frequency pulling. Common application scenarios include automatic door slides for trains, internal adjustment structures for aircraft seats, movable protective covers for large factory CNC machines, and banknote storage modules inside bank automated teller machines (ATMs). These applications require the slides to have extremely high durability and the ability to maintain smooth operation for a long time.

How to Choose Telescopic Slides?

Choosing the right telescopic slides requires consideration of the load type, installation space, and the combination of safety accessories to verify that the selected slides are suitable for the expected load conditions and operating environment.
〈Extended Reading: Complete Guide to Drawer Slides: Types, Sizes, and Selection Tips〉

Evaluating Static vs. Dynamic Loads

When calculating the load, it is necessary to clarify whether the equipment is in a stationary or moving state. In dynamic applications (such as installation on moving vehicles or vibrating machinery), the allowable load value that telescopic slides can withstand will be much lower than in static applications. Engineers should conduct dynamic stress assessments based on the actual available space of the cabinet, the center of gravity of the load, and the weight distribution to determine the final specifications.

Lock-in/out, Self-closing & Anti-rebound

When purchasing telescopic slides, safety accessories should also be considered. For example, the Lock-in/Lock-out locking module (L76131) provided by Sun Chain can ensure that the drawer is fixed when fully closed or fully extended, preventing accidental sliding during operation; combined with the D3000 push-lock handle, the lock can be easily released. In addition, the Self-closing & Anti-rebound design ensures that the drawer closes securely when pushed back. The operation methods of different locking mechanisms may vary slightly, so selection should be based on the end user’s operating habits.

Telescopic Slides Q&A

Q1: How Much Vibration Can Sun Chain’s Heavy-Duty Slides Withstand?

Sun Chain's products have passed the IEC 60068-2-64 vibration test for ground vehicles, which means that in harsh random vibration dynamic environments, the internal ball bearings, metal tracks, and locking parts maintain structural stability without abnormal loosening under tested vibration conditions. This vibration resistance makes the products ideal for use in heavy transport vehicles, military equipment, and fire vehicles.

Q2: What Is an Inter-locking System? Why Do High-Density Storage Cabinets Need It?

Inter-locking is an anti-tip interlocking safety mechanism. When multiple drawers filled with heavy objects are pulled out at the same time, the center of gravity of the cabinet will shift forward, which can easily cause the entire cabinet to tip over. The interlocking system uses mechanical linkage to ensure that only one drawer can be pulled out at a time, while the other drawers are forced to lock. This is an important design for reducing the risk of industrial accidents in high-density heavy-duty tool cabinets or hospital medicine carts.

Q3: Can Telescopic Slides with Special Specifications Be Customized?

Yes, it is possible. Sun Chain has professional 3D design capabilities and its own manufacturing facility, providing OEM/ODM customization services. If standard products cannot meet your requirements, Sun Chain can adjust specifications for special telescopic travel, slide lengths, or specific load conditions. This includes changing mounting hole dimensions, modifying extension types, adding locking modules, or applying special surface protection treatments.

Conclusion

Choosing the right telescopic slides requires comprehensive consideration of load capacity, extension travel, vibration resistance in special environments, and operating temperature tolerance. From static industrial storage cabinets to dynamic special vehicle modifications, accurately evaluating deflection and service life is key to ensuring equipment safety. Through the high-quality slide products and customization services provided by Sun Chain, Sun Chain helps customers address complex storage and operational requirements in demanding industrial environments. If you are looking for telescopic slides that meet rigorous testing standards, contact us for the best hardware configuration recommendations.
