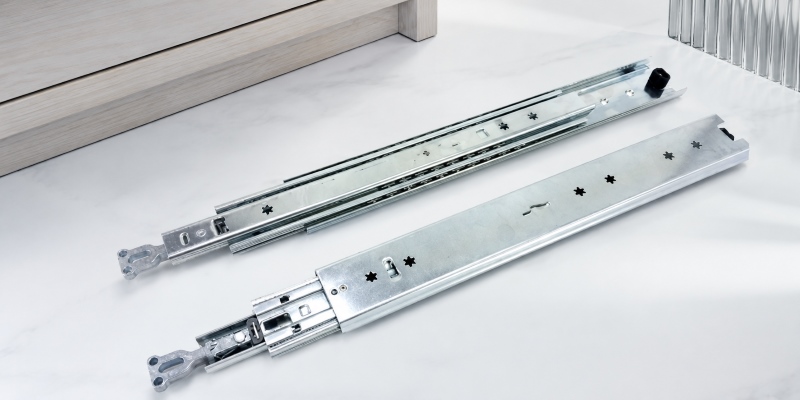

How Locking Drawer Slides Improve Safety in Industrial Systems

In mobile equipment such as commercial vehicles, trains, or transit systems, drawers and storage units can easily shift or slide during sudden braking, turns, or uneven road conditions. This may affect usability and create safety risks. To prevent this, many applications use locking drawer slides to keep drawers securely fixed in place during both movement and stationary use. This article briefly introduces heavy-duty locking drawer slides, their common applications, and key considerations for selection, installation, and maintenance.

What are Heavy-Duty Locking Drawer Slides?

Heavy-duty locking drawer slides are a type of slide system that combines high load capacity with locking functionality. They feature two locking modes: lock-in and lock-out, allowing the drawer to remain securely fixed in either the closed or open state, preventing accidental sliding during vehicle acceleration, braking, or on slopes.

Structurally, these locking drawer slides are mostly made of high-strength cold-rolled steel, with surfaces treated with zinc plating or electroplating for rust prevention and enhanced durability. Internally, depending on different designs and usage requirements, they are equipped with ball bearings. Some models also include nylon bumpers, depending on the slide structure and application requirements, to ensure smoother and more stable movement in harsh industrial and outdoor environments.

Best Uses for Heavy-Duty Locking Drawer Slides

Heavy-duty locking drawer slides are typically used in places that require high load capacity and are prone to vibration, such as vehicles, industrial equipment, or various mobile storage systems. In these high-vibration applications, they can effectively prevent drawers from loosening, sliding out, or shifting during travel or use. Below is a summary of several common application scenarios:

Heavy-Duty Locking Drawer Slide Applications

Safety in Commercial and Service Vehicles

On mobile platforms such as commercial vehicles, fire trucks, and engineering maintenance vehicles, drawer storage often carries high-load tools and equipment. When the vehicle brakes, turns, or travels on slopes, if the slides are insufficiently secured, drawers may slide out due to inertia, increasing the risk of equipment damage and operational hazards. Heavy-duty locking drawer slides allow drawers to be securely locked in specific positions, reducing the risk of accidental sliding during vehicle shaking or tilting, thereby enhancing overall storage safety and reliability.

Stability for Train and Metro Control Systems

Similarly, when trains and metros are in operation, the vehicle body continuously generates high-frequency vibrations. Heavy and precision components such as battery boxes and control modules can easily loosen over time if not securely fixed, potentially affecting system operation. Heavy-duty locking drawer slides utilize reinforced steel structures for better rigidity, reducing the risk of deformation or fatigue caused by long-term vibration. For maintenance personnel, when pulling out drawers for replacement or maintenance while the train is stopped, the drawers will be more stable and remain stable during maintenance operations, making operations easier and safer.

How to Install Heavy-Duty Locking Drawer Slides

For heavy-duty locking drawer slides to effectively provide load-bearing and stability, installation is critical. The following key points must be given special attention in engineering practice:

Leave Proper Clearance Between Drawer and Cabinet

Heavy-duty locking drawer slides are mostly side-mounted designs, so space must be reserved between the drawer and the cabinet. If installed too tightly, the slides may bind or undergo excessive friction during operation, leading to issues like jamming, wear, or unsmooth movement. As for the required clearance, the actual dimensions should follow individual slide specification drawings. Since requirements vary for different slide models, always confirm with the specification drawings before installation.

Make Sure Left and Right Slides Are Installed Correctly

When installing heavy-duty locking drawer slides, you must first distinguish between the left and right slides. These types of slides usually have left and right configurations; if installed on the wrong side or mixed up, the locking mechanism may not function properly, and in severe cases, it could cause the drawer to jam or fail to open and close smoothly.

Tighten All Screws at Key Load Points

Furthermore, screws must be fixed according to the hole positions recommended by the original manufacturer, especially at the main load-bearing points, which must be securely tightened. This ensures that weight is evenly distributed across the entire slide rather than concentrated at a single point. If the load is uneven, the slides may deform or loosen after long-term use, potentially affecting the smooth operation of the drawer.

Maintenance for Heavy-Duty Locking Drawer Slides

To maintain the stability and smoothness of heavy-duty locking drawer slides over the long term, basic maintenance is essential. Especially when used in vehicles or industrial environments, dust, continuous vibration, and long-term loads will gradually affect the performance of the slides.

Check the Locking Pawl Regularly

The locking pawls and springs are the most frequently operated parts in heavy-duty locking drawer slides. After prolonged use, they may become loose, experience weakened rebound or fail to lock securely. It is recommended to manually test whether locking and unlocking are smooth on a regular basis. If there is any jamming, reduced tension, or uncertainty about whether it is securely engaged during operation, it should be inspected early and replaced if necessary.

Keep the Sliding Rails Clean and Properly Lubricated

If heavy-duty locking drawer slides are used outdoors or in environments with a lot of dust, the slide rails can easily accumulate dust, sand, or debris, which will affect the smoothness of the sliding over time. It is best to regularly wipe the tracks and apply an appropriate amount of industrial grease to keep the rolling smooth and reduce the likelihood of wear or jamming.

Check for Loose Screws

In environments such as vehicles or machinery that experience long-term vibration, the screws of heavy-duty locking drawer slides may gradually loosen. Initially, there may not be obvious problems, but over time it will affect the stability of the slides. Remember to conduct regular inspections to re-confirm and tighten all fixing points, avoiding shaking, offset, or unsmooth use caused by loosening.

Why Choose Sun Chain for Heavy-Duty Locking Drawer Slides?

Sun Chain has focused on the R&D and manufacturing of heavy-duty slides and industrial-grade sliding systems since 1975, accumulating over 50 years of practical experience. We are very familiar with the actual requirements of vehicles, rail transit, and various high-vibration environments.

Unlike general slide products, Sun Chain's heavy-duty locking drawer slides are designed from an engineering application perspective. The focus is not just on load-bearing capacity, but on maintaining smooth sliding performance, structural stability and long-term operational reliability in actual usage scenarios—even when facing vibration, frequent opening and closing, and continuous load cycles.

In addition, Sun Chain holds ISO 9001 certification, and its products are compliant with REACH and RoHS standards. We can provide customized adjustments according to different industry needs, making their products more closely aligned with actual application conditions, suitable for industrial and professional fields with high requirements for stability and reliability.

Locking Drawer Slide FAQs

How do these products resist rust in outdoor or industrial environments?

Locking drawer slides are generally manufactured from high-strength cold-rolled steel and paired with surface zinc plating, which effectively reduces rust issues caused by moisture and general environmental corrosion, making them suitable for most industrial and vehicle applications.

If the operating environment is more severe, such as long-term humidity, outdoor, or high-corrosion scenarios, you can also choose upgraded versions, such as stainless steel (304 stainless steel) materials, which offer better weather resistance and corrosion resistance, making them more suitable for special industrial or outdoor scenarios.

How is longevity guaranteed under heavy-duty conditions?

Locking drawer slides undergo repeated durability testing before leaving the factory, performing over 50,000 opening and closing cycles under standard full-load conditions to confirm that the slide structure and locking mechanism remain stable and do not deform or fail after long-term use.

However, the actual service life may vary depending on load conditions, installation accuracy, and operating environment. Therefore, the test data primarily serves as a reference baseline for design and quality verification.

Conclusion

When selecting models for a project, the stability and durability of locking drawer slides directly impact system reliability and operational safety. If you hope the locking function remains stable over the long term, proper installation and load evaluation are critical for long-term locking performance; this includes whether the installation is correct and whether the actual load has been properly evaluated, both of which directly affect final performance. Sun Chain provides engineering support, customized load solutions, and OEM project consultation, assisting with model selection and design optimization based on different application needs. Contact us to further discuss your project requirements.
