The Applications of Heavy-Duty Lockable Drawer Slides for a Safer Workspace!

Heavy-duty slides are common components in industrial machinery, modified vehicles, and large tool cabinets. Standard drawer slides cannot handle frequent vibrations, extreme weight, or high-dynamic movement environments, such as: vehicle storage or rail equipment. In these cases, heavy duty lockable drawer slides can maintain the stability of drawers during movement. Slides with mechanical locking functions can help prevent unintended drawer extension caused by inertia, improving operational safety for both operators and equipment.
〈Extended Reading: The Ultimate Guide to Heavy-Duty Drawer Slides: Engineering Strength for High-Capacity Needs〉

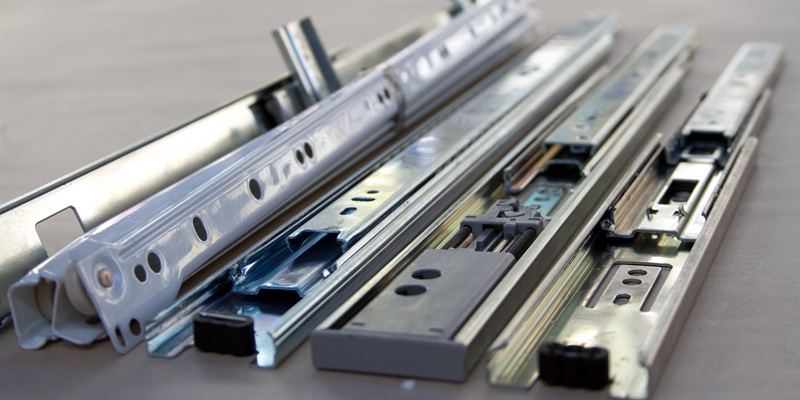

What are Heavy Duty Lockable Drawer Slides?

Heavy duty lockable drawer slides are hardware accessories specifically designed for high-load environments, typically manufactured using thick cold-rolled steel and hardened steel ball bearings. The biggest difference from standard drawer slides is that these slides are equipped with mechanical locking levers and latch mechanisms at the front. This design ensures that the drawer remains fixed when fully closed or fully extended, requiring the lever to be manually pressed to unlock, preventing the drawer from sliding open due to gravity, tilting, or vehicle vibration.
〈Extended Reading: How Locking Drawer Slides Improve Safety in Industrial Systems〉

The Difference Between Heavy-Duty Lockable Drawer Slides and Regular Heavy-Duty Drawer Slides

While general heavy-duty slides have high load-bearing capacity, in moving or vibrating environments, drawers may slide open on their own due to inertia. Heavy duty lockable drawer slides feature a built-in physical mechanical two-way locking mechanism. Users do not need to install additional locks or fixing buckles on the exterior of the cabinet; the slide’s built-in locking design provides anti-slide protection, reducing installation steps and maintaining a cleaner, flatter appearance.
〈Extended Reading: Complete Guide to Drawer Slides: Types, Sizes, and Selection Tips〉

Heavy Duty Lockable Drawer Slides VS. Heavy Duty Drawer Slides

(Swipe left or right to view the full table)

Best Applications for Heavy Duty Lockable Drawer Slides

Different industries rely on the mechanical locking technology of heavy duty lockable drawer slides when facing heavy storage and frequent movement needs, in order to prevent equipment from accidentally sliding out and causing danger.
〈Extended Reading: Top Mount Drawer Slides: Design, Installation, and Maintenance Guide〉

Industrial Equipment and Machine Cabinets

In automated equipment or industrial storage systems, it is often necessary to store heavy molds, tools, or spare metal parts. Heavy duty lockable drawer slides can withstand hundreds of kilograms and ensure that internal drawers remain tightly closed during continuous machine operation and high-frequency vibration, preventing parts from falling and being damaged.
〈Extended Reading: Heavy-Duty Tool Box Drawer Slides: A Technical Guide to Industrial Applications and Specifications〉

Tool Chests, Utility Trolleys, and Train Carriages

Maintenance technicians rely on large tool cabinets to store wrenches, power tools, and heavy metal parts. Lockable slides ensure that when maintenance carts move across rough factory floors, the drawers do not slide open due to bumps. Furthermore, in train carriages or track equipment, heavy duty lockable drawer slides can also resist long-term high-frequency vibrations, keeping equipment cabinets firmly fixed in place.
〈Extended Reading: The Strategic Edge of Two-Way Drawer Slides: Beyond Conventional Storage〉

Vehicle Storage and Mobile Workstations

Trucks, SUVs, or specially modified vehicles (such as fire trucks and ambulances) often have storage drawers installed in the cabin to store generators or camping gear. The locking mechanism of the slides prevents drawers from violently sliding out due to strong inertia during sudden braking, uphill climbs, or turns.
〈Extended Reading: Maximize Your Cargo Space: The Ultimate Guide to Van Shelving Solutions〉

Medical and Specialized Equipment

Precision medical equipment cabinets on ambulances, internal restocking tracks for vending machines, or ATM cash drawers all require high load-bearing and stable push-pull mechanisms. Lockable slides can ensure that when personnel operate these systems, the retrieval process is smooth and safe.

How to Install Heavy Duty Lockable Drawer Slides

During installation, it is essential to ensure that the left and right slides are perfectly parallel and that the direction of the locking mechanism aligns with the drawer's push-pull direction. Since the slides themselves are heavy, it is recommended that at least two people work together to install large slides, and to use high-strength screws for fastening.

Preparing for Installation

First, measure and confirm the installation clearance between the drawer and both sides of the cabinet. Heavy duty lockable drawer slides are usually thicker; installation clearance requirements vary by slide model and specification. Users should follow the dimensional requirements provided for each product. If the reserved clearance is insufficient, it will cause the slides to fail to fit smoothly or result in jamming during operation; however, the actual lateral clearance should strictly follow the dimensional specifications of that specific slide model.

Separating the Slide Components

To maintain structural stability and safety under high load-bearing conditions, most heavy duty lockable drawer slides are designed with non-separable inner and outer rails (non-detachable). During installation, you cannot remove the inner rail to lock it onto the drawer like general household slides; the slide must be fastened while fully extended.

Mounting the Cabinet Side

First, install the outer rails of the heavy-duty lockable slides onto the inside of the cabinet; you must use a level to ensure that the heights of the slides on both sides are perfectly consistent and parallel. Even slight misalignment between the two slides may result in increased resistance during operation and could affect proper engagement of the locking mechanism.

Mounting the Drawer Side

Next, align the drawer with the holes on the inside of the slides for fastening. Because heavy duty lockable slides are non-detachable, it is recommended to place wooden blocks or supports under the drawer to elevate it to the correct installation height. This can significantly reduce the difficulty of aligning the holes, making it easier for personnel to accurately drive the screws.

Testing and Adjustment

After all screws are tightened, press the locking lever at the front and push and pull the drawer repeatedly several times. The focus of the test is to confirm whether the lock-in and lock-out functions can indeed produce a clicking sound and be firmly fixed.

How the Lock-in and Lock-out Dual Locking Mechanism Works

The Lock-in function prevents the drawer from accidentally opening during transport or movement, preventing items from falling out or shifting the cabinet’s center of gravity. The Lock-out function can firmly fix the drawer in the fully extended position, ensuring that when operators are retrieving heavy parts or maintaining the machine, the drawer will not suddenly slide back inward and pinch their hands.

Maintenance for Heavy Duty Lockable Drawer Slides

If heavy duty lockable drawer slides are in dusty environments, moisture, or frequent vibration for extended periods, the internal steel ball tracks are prone to accumulating dirt. During maintenance, regularly check whether the fixing screws of the slides and the cabinet are loose, and pay attention to whether the spring of the locking lever has abnormal rebound or signs of fatigue. Regularly clean the old lubricant that has absorbed too much dust in the track and reapply suitable industrial grease to maintain smooth sliding and the lifespan of the locking mechanism.

Why Choose Sun Chain for Heavy Duty Lockable Drawer Slides

Sun Chain has 50 years of hardware manufacturing experience, specializing in creating durable slide products for high-load and high-motion environments, and possesses a professional reputation in the fields of industrial equipment and special vehicle modification.

Custom Dimensions and OEM/ODM Support

Sun Chain provides complete OEM and ODM services, which can be customized and adjusted according to the customer's chassis size, slide length, specific installation hole positions, and extension stroke requirements, helping equipment manufacturers significantly reduce the costs of subsequent secondary processing and mold modification.

Optimizing Material and Durability

The products are manufactured using high-strength cold-rolled steel paired with industrial-grade solid steel balls, maintaining smooth and quiet sliding operation even under extreme load conditions. The anti-rust treatment on the slide surface can also effectively handle the moisture and temperature changes often faced by vehicle storage cabinets or outdoor workstations.

Stable Quality and Batch Consistency

For project customers, Sun Chain values stable quality and batch consistency, ensuring that every batch of products can maintain the same performance and lifespan. This not only helps improve the overall stability of the equipment but also allows machine manufacturers to plan part matching and compatibility with more peace of mind during design and subsequent expansion, reducing future adjustment costs and risks.

Heavy Duty Lockable Drawer Slides FAQs

Q1. How Do You Know Whether Heavy Duty Lockable Drawer Slides Are Right for Your Equipment?

It is recommended that engineers first confirm the estimated maximum load of the equipment, the required travel length, the installation space reserved in the cabinet, and whether a two-way locking function is required, and provide dimensional drawings or 3D CAD files. The Sun Chain team will assist in evaluating whether the load distribution and slide configuration meet safety standards.

Q2. What Advantages Does Sun Chain Offer Compared with Standard Residential Drawer Slides?

Standard residential drawer slides generally do not include dedicated mechanical locking mechanisms. Sun Chain's heavy-duty slides are designed for heavy industry and vehicle environments, using high-strength thick steel plates that can withstand hundreds of kilograms of load for long periods without deformation, and provide a reliable slide-out prevention locking mechanism.

Q3. Can the Inner and Outer Rails of Heavy-Duty Lockable Drawer Slides Be Detached?

In order to withstand extreme weight when fully extended, most heavy duty lockable drawer slides use a non-detachable (non-separable) design. This design helps maximize structural rigidity between the inner and outer rails, preventing the drawer from derailing due to excessive load.

Q4. Can the Locking Lever Be Replaced Separately if Accidentally Damaged?

The locking lever is usually integrated with the latch mechanism at the front of the slide and riveted to the rail. If the lever or locking mechanism is damaged due to a strong external impact, the part cannot be replaced individually. It is generally recommended to replace the entire slide set to ensure safety.

Q5. What Screws Are Suitable for Installing Heavy-Duty Lockable Drawer Slides?

Depending on the hole size and load rating of the slide, installing heavy duty lockable drawer slides usually requires M4, M5, or M6 high-strength metal screws. During installation, you must also carefully confirm that the screw length does not interfere with the sliding of the internal steel balls.

Conclusion

For applications requiring high load capacity and anti-slip-out safety mechanisms, correct installation steps, precise lateral clearance reservation, and rigorous load assessment are just as important as the manufacturing quality of the slide itself. Choosing the correct specifications and high-quality heavy duty lockable drawer slides can provide stable two-way locking functions and effectively ensure the safety of precision equipment and on-site operators. Contact Sun Chain to learn more.
