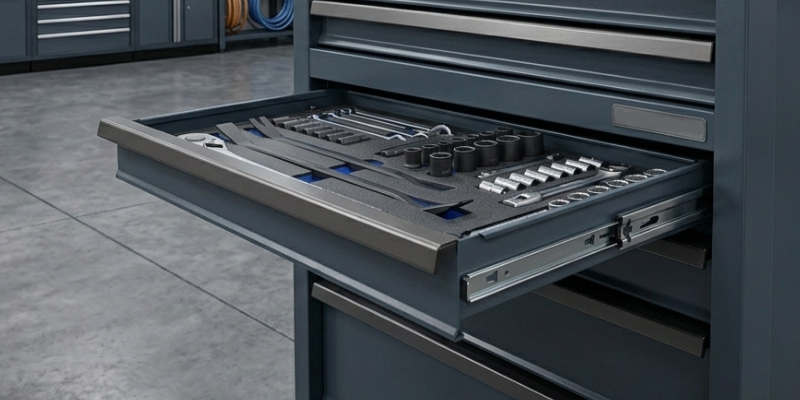

Heavy-Duty Tool Box Drawer Slides: A Technical Guide to Industrial Applications and Specifications

Your tool box is only as good as its slides. In professional workshops, you need heavy-duty tool box drawer slides—hardware engineered for high-load applications, with actual load capacity depending on model, installation conditions, and extension length. Think of your cabinet as the skeleton and these heavy-duty slides as the muscles that keep massive gear moving smoothly and safely. This guide covers the essentials of choosing, installing, and maintaining your high-capacity slides to keep your workstation running like a dream.

Why Quality Heavy-Duty Tool Box Drawer Slides Matter

For industrial professionals pursuing perfection, heavy-duty tool box drawer slides are the heart of efficiency, not just generic hardware. Low-grade slides result in jarring friction and noise, or worse—critical failure that endangers both high-value equipment and operators. Investing in superior slides elevates reliability, delivering precision motion and unwavering stability to optimize your workstation’s total output and safety.

Load Capacity and Safety

The load capacity of heavy-duty tool box drawer slides stands as the primary indicator for evaluating safety. Tool boxes typically house high-density metals like wrenches, sockets, and pneumatic tools, which carry immense weight. If slides lack sufficient load-bearing capacity, long-term use will lead to track deformation, ball bearing wear, or even "derailing" accidents. Even more dangerous is the risk of "Tipping"; when multiple under-capacity drawers are pulled out simultaneously, the shift in the center of gravity may cause the entire cabinet to topple over. Selecting heavy-duty tool box drawer slides that meet or exceed expected loads serves as an absolute defense for operator safety and accident prevention.

Improving Workflow Efficiency

Time equals money, especially in high-intensity repair or production environments. A set of premium heavy-duty tool box drawer slides possesses extremely low starting resistance and sliding friction coefficients, allowing technicians to open and close drawers with one hand in the most intuitive, effortless manner. This smooth "tactile feel" reduces physical strain during operation and eliminates interruptions caused by stuck drawers. When tool access becomes fluid, technicians can focus more on their repair tasks, significantly improving the smoothness and efficiency of daily operations.

Protecting Your Investment

Precision instruments and power tools are costly investments that are highly sensitive to shock. Premium heavy-duty tool box drawer slides feature advanced ball bearings and shock-absorbing mechanisms that cushion every movement. This stability prevents tools from slamming together or shifting, protecting both your gear and internal organizers. Ultimately, investing in superior slides eliminates the hidden costs of replacing damaged equipment.

Functional Configurations of Heavy-Duty Tool Box Drawer Slides

In professional industrial environments, the choice of heavy-duty tool box drawer slides goes beyond basic movement. When dealing with loads exceeding 100kg, the slide's architecture determines the safety and longevity of the entire workstation. In these high-pressure sectors, ball bearing slides are the absolute standard due to their superior load-bearing capacity and lateral stability. The following sections analyze the key functional configurations designed for heavy-duty performance.

Industrial Grade Ball Bearing Slides

Ideally suited for professional workstations, these slides use rolling steel balls to ensure smooth, silent operation. They provide superior lateral stability compared to traditional rollers, excellent lateral stability at full extension. Designed for frequent use, they offer the best mix of long-lasting durability and premium feel.

Soft-Close vs. Self-Close Options

These two functions are often confused, but their purposes differ distinctively:

• Soft-Close: This feature utilizes hydraulic or pneumatic dampers to decelerate the drawer in the final stage of closing, preventing violent impacts against the cabinet. This not only eliminates noise but also prevents internal tools from shifting due to inertia.

• Self-Close: This feature uses a spring mechanism to automatically pull the drawer shut when pushed to a certain position. This ensures the drawer does not remain partially open, avoiding the danger of drawers accidentally sliding out when moving the mobile workstation.

Full Extension vs. Over-Travel

The slide's extension length directly affects space utilization:

• Full Extension: The distance the drawer pulls out equals the length of the slide itself, allowing the interior space of the drawer to be fully revealed.

• Over-Travel: The pull-out length exceeds the slide's own length (usually by 1-2 inches). This design allows the back of the drawer to clear the cabinet edge completely, resolving dead zones for accessing deep tools. For deeper tool boxes, over-travel designs maximize space utility.

Lock-in vs. Lock-out

To accommodate the needs of heavy-duty storage cabinets, locking functions are crucial:

• Lock-in: This ensures the drawer remains latched in the closed position and cannot be pulled open without pressing the release lever. This prevents drawers from sliding out due to centrifugal force during transport or pushing, which could cause the cart to tip.

• Lock-out: The drawer automatically locks when fully extended. This prevents the drawer from accidentally retracting when working on uneven ground or using the drawer as a temporary workbench, avoiding inconvenience or finger injuries.

Technical Specs for Heavy-duty Tool Box Drawer Slides

To select the right slide, one must learn to interpret the manufacturer's technical specifications (Data Sheet). These figures represent the product's physical limits and suitable environments. Professional purchasing judgment should cover load testing standards and material selection. The following are key indicators you must observe.

Dynamic vs. Static Load Ratings

Many users misinterpret load data. Static load refers to the maximum weight the slide can support while stationary; dynamic load refers to the weight limit under which the slide maintains normal operation after frequent opening and closing cycle tests, aligned with standard industrial compliance. Since tool box drawers are constantly in motion and may endure momentary downward pressure during operation, buyers must use the more conservative "Dynamic Load" rating as the primary basis and reserve a safety margin of approximately 20%, with Sun Chain internal testing including cycle load and vibration simulation for industrial use case validation.

Actual dynamic load performance may vary depending on installation condition, extension length, and center-of-gravity distribution, as factors such as cabinet rigidity or uneven loading can significantly influence real-world performance.

Cold Rolled vs. Stainless Steel

• Cold Rolled Steel: As the industry standard, cold rolled steel stands out for its formidable strength and immaculate surface finish. It delivers exceptional cost-performance, making it the ideal choice for controlled indoor environments such as precision factories or maintenance workshops.

• Stainless Steel: For environments plagued by extreme humidity, outdoor exposure, or aggressive chemicals (e.g., marine or food processing), 304 or 316-grade stainless steel is indispensable. While it requires a higher initial investment, its unrivaled corrosion resistance guarantees flawless, long-term operation where standard materials would fail.

Durability and Cycle Testing

Premium slides must endure stringent lifespan evaluations. International standards mandate that slides undergo at least 50,000 opening/closing cycles under a rated load without mechanical failure. Some heavy-duty industrial slides even exceed 100,000 cycles. Verifying authoritative test reports from certifications like SGS, BIFMA, or ANSI/BHMA is often used to ensure product reliability and performance consistency.

Sun Chain internal durability and cycle tests are based on BIFMA-related testing methodologies, with customer-specific testing available upon request to meet application-specific requirements.

Environmental Resilience and Corrosion Resistance

Beyond mechanical strength, the specific atmosphere of an industrial site dictates the necessary durability of heavy-duty box drawer slides. In heavy-duty sectors like railway maintenance or large-scale manufacturing, equipment is frequently exposed to high humidity, metallic dust, or even corrosive chemical vapors. Without proper environmental resilience, oxidation can seize ball bearing mechanisms, leading to increased friction or complete mechanical failure. Therefore, evaluating the workspace—whether it is a temperature-controlled precision plant or a rugged, outdoor-exposed depot—is essential for determining the appropriate anti-rust treatments and material grades required to ensure long-term operational reliability.

To meet these demands, Sun Chain provides multiple surface treatment options, including zinc plating, black zinc, and electrophoretic black coating, with corrosion resistance validated through salt spray testing of ≥48 hours depending on specifications.

How to Measure Heavy-duty Tool Box Drawer Slides

Inaccurate dimensioning is the primary cause of installation failure. Precise sizing requires more than just length; it demands a meticulous assessment of width, clearance, and depth. Side clearance must match Sun Chain production tolerance of ±0.2–0.3mm, depending on model specifications and installation requirements. Follow these essential guidelines to guarantee a seamless fit.

Measuring Depth and Cabinet Space

Avoid measuring only the old drawer length. Instead, determine the internal clearance of the cabinet (the span from the front edge to the rear panel). The optimal slide length must be shorter than the cabinet’s effective depth. We recommend maintaining a sufficient rear buffer of 1-2 cm to accommodate the mounting mechanism and prevent interference with the back panel. For instance, if your cabinet depth is 50 cm, a 45 cm or 48 cm slide is the ideal choice.

Calculating Side Clearance

This is the most critical data point for a successful installation. While standard industrial slides typically feature a thickness of 12.7mm (1/2 inch), heavy-duty and ultra-high capacity models often require wider profiles—such as 19mm or greater—to maintain structural integrity under extreme weight. You must precisely measure the single-side gap between the drawer side and the cabinet's inner wall.

• If the gap is too narrow: The slide will bind or deform under pressure, causing heavy movement or total mechanical failure.

• If the gap is too wide: The slide cannot be securely fastened, leading to loose mounting screws or drawer detachment.

Always verify the exact thickness on the technical data sheet of your specific heavy-duty tool box drawer slides before finalizing your cabinet design or purchasing replacements.

Choosing the Right Slide Length

In principle, slide length should match the drawer length as closely as possible to achieve maximum extension.

• If the slide is shorter than the drawer: The rear section of the drawer cannot fully extend, making item retrieval difficult.

• Generally, we do not recommend slide lengths greater than the drawer depth, as protruding tracks may cause aesthetic issues or safety concerns. The best choice is a specification identical to the drawer depth or within 2-5 cm shorter.

• Additionally, the longer the slide, the more pronounced the leverage effect becomes, increasing sag when fully loaded; therefore, longer slides require even greater attention to load-bearing specifications.

How to Install Heavy-duty Tool Box Drawer Slides

Achieving a stable, long-lasting setup begins with a systematic installation. First, gather your essential gear: a tape measure for marking, a level to stop any tilting, and a power drill. When choosing fasteners, always use flat-head screws to prevent the mechanism from jamming. Start by separating the inner and outer rails. Once the old hardware is out, line up the new outer rail against the cabinet wall and the inner rail on the drawer side. It is vital to keep them perfectly horizontal; otherwise, you’ll deal with annoying resistance or drawers that slide open on their own.

For professional-grade strength, where you mount the slides is just as important as how you mount them. Based on technical requirements, slides must be securely anchored to a metal structural member or a solid frame. We strictly advise against attaching them only to thin sheet metal, as it can easily tear under heavy pressure. After they are in place, double-check that both sides are parallel using your level. If you feel any resistance when sliding the drawer in, stop immediately. Never force it; this usually means the ball bearing retainer is misaligned and needs a quick manual adjustment.

Maintaining Your Heavy-duty Tool Box Drawer Slides

The secret to maintaining that "like-new" smooth glide lies in consistent care. In busy workshops, contamination and excessive loads are the two main threats to tool box drawer slide performance. Dust and fine metal particles can accumulate inside the mechanism, while exceeding the rated capacity may permanently deform the tracks. Managing both factors is essential for long-term reliability.

Regular maintenance is simple but crucial. Clear out accumulated dust and iron filings using a clean cloth or compressed air. After cleaning, apply a high-quality white lithium grease to ensure smooth operation and reduce friction. Finally, listen for unusual clicking sounds and inspect for loose ball bearings, as these are early warning signs that the slide may need replacement.

Sun Chain MES system enables production batch traceability and maintenance record linkage, supporting industrial traceability and ESG-related compliance management.

Why Choose Sun Chain for Heavy-Duty Tool Box Drawer Slides

In the fiercely competitive hardware market, Sun Chain has stood tall for half a century since its establishment in 1975. We are not merely a manufacturer but the strongest backing for countless professional tradespeople and international brands. From design and R&D to precision manufacturing and global logistics, Sun Chain upholds a commitment to quality, providing you with one-stop premium service.

Decades of Manufacturing Expertise

Fifty years of industry experience have given us a profound understanding of metal processing and slide mechanisms. Sun Chain's core values lie in "Stability" and "Passion." We deeply understand the pain points of slides in extreme environments; therefore, all our products undergo rigorous real-world verification. Choosing Sun Chain means choosing a partner with rich experience and trustworthiness. We promise to infuse your products with a solid soul.

Custom OEM & Brand Solutions

We understand that every client's needs are unique. Sun Chain possesses highly flexible production lines capable of supporting "high-mix, low-volume" orders. Whether for special lengths, specific hole patterns, or exclusive surface treatments, our R&D team can provide rapid customized OEM services. This not only meets your special specification requirements but also effectively reduces your inventory pressure and increases market response speed.

Certified Quality Control

Quality is the language Sun Chain speaks. We hold ISO international certifications, and our products have repeatedly won the Taiwan Excellence Award. Through the introduction of MES smart manufacturing systems, we strictly monitor every production link. From light-duty slides to extra-heavy-duty industrial slides capable of bearing up to 500 kg, every product leaving Sun Chain represents consistent high quality and safety, ensuring your end customers enjoy the finest user experience.

Conclusion

High-quality heavy-duty tool box drawer slides are the essential foundation of any professional workstation. These components ensure heavy equipment stays accessible while protecting your valuable tools from vibration and wear. By selecting slides with the correct load capacity and extension type, you optimize your workflow and prevent dangerous tipping accidents. In addition, Sun Chain also supports QR code traceability, MES integration, and material batch tracking to enhance production visibility and quality control. Achieve seamless workflow efficiency with Sun Chain’s high-precision heavy-duty tool box drawer slides. Get in touch with Sun Chain today for expert solutions.
