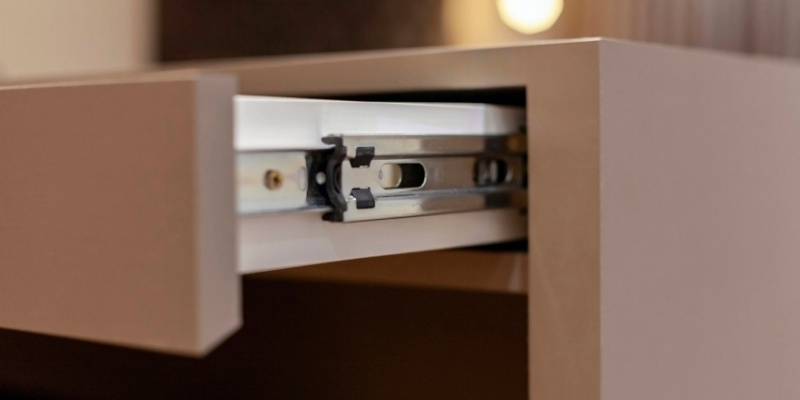

Top Mount Drawer Slides: Design, Installation, and Maintenance Guide

If you are planning a drawer design or encountering an old cabinet with insufficient side space to install standard side-mount slides, you may consider using top-mount drawer slides. They can be flexibly applied to storage under work surfaces, keyboard trays, and various system cabinet designs, making space utilization more flexible. This article will show you which scenarios top mount drawer slides are suitable for, as well as key points during installation, helping you find a clearer direction during design or selection.

What is a Top Mount Drawer Slide?

A top mount drawer slides is a slide system installed on the upper edge of a drawer opening. It is usually fixed under a tabletop or at the upper frame position of a cabinet, supporting the drawer from above. This design is commonly used for keyboard trays, pull-out storage boxes, or furniture structures where side space is limited, and side-mount slides cannot be accommodated.

Due to the installation position, the slides are exposed when the drawer is opened, and they also occupy a portion of the internal space above the drawer. However, the advantage is high installation flexibility, making them very suitable for retrofitting existing desks or system cabinets without requiring significant structural modifications. It should be noted that top mount drawer slides are more suitable for light-duty to medium-duty applications; they are not recommended for heavy-duty load-bearing scenarios.

Best Applications for Top Mount Drawer Slides

Top mount drawer slides are suitable for application scenarios that prioritize functionality and have where concealed hardware is not a priority. They are quite suitable for kitchen cabinets, storage under office desks, or some lightweight furniture designs.

Classic Solutions for Traditional Wooden Kitchen Drawers

When renovating traditional wooden kitchen cabinets, one often encounters insufficient side space, making it impossible to retrofit the side-mount slides common today. Top mount drawer slides are designed to complement traditional woodwork structures. By installing via top suspension support, the drawer system does not rely on side space while maintaining a clean external appearance.

During installation, you only need to replace the existing slide system with a top-mount structure to restore smooth drawer movement. The process does not require major modifications to the drawer panels or damage to the cabinet's original appearance.

Enhancing Lightweight Furniture and Home Storage

In compact furniture and home office furniture applications, top mount drawer slides have a lightweight structure and sufficient support and are commonly used in drawers under desktops or keyboard tray designs. They can directly utilize the previously idle space under the desktop, converting it into usable storage drawers without requiring much structural modification. This makes storage configurations in small spaces more complete, and daily use and organization smoother.

Top Mount Drawer Slides Comparison

How to Install Top Mount Drawer Slides for Maximum Durability

To ensure top-mount drawer slides last longer and slide smoothly, the key lies in whether the upper mounting structure is robust enough. Because these slides bear weight from above, the drawer's weight is transmitted directly to the mounting points. If the upper panel is too thin or lacks support, it will easily sag or loosen over time, causing the sliding motion to become less smooth.

Check the Support First

Before installation, confirm whether the upper support structure is stable enough; this step is very important. Top mount drawer slides are screwed underneath the upper structure. If the foundation is not firm enough, it can easily affect sliding smoothness under long-term load or lead to loosening and deformation. Particle board or thin wooden panels may require a reinforcement structure, as some furniture lacks sufficient strength and may sag or come loose with prolonged use.

Keep Both Sides Level

When installing top mount drawer slides, both the left and right sides must be aligned and kept level first. If the heights on both sides are different, the drawer will easily tilt to one side when pulled, causing jamming or uneven movement; over time, this can also cause uneven stress on the tracks. Therefore, before driving in the screws, verify that both sides are perfectly aligned.

Use the Right Screws and Tighten Them Securely

During installation, the screw length should be correctly selected according to the specifications of the top-mount drawer slides and then firmly fixed to the upper structure. At the same time, the mounting points between the drawer end and the slides must also be tightened. If the mounting points are properly fixed, the overall structure will be much more stable, and the structure will be less likely to loosen or abnormal noise during use.

Essential Maintenance for Top Mount Drawer Slides

For top mount drawer slides to operate stably, the most basic requirement is to keep the tracks clean. After a period of use, sawdust, dust, or small debris can easily get stuck in the tracks. This buildup will affect the operation of the ball bearings and increase friction, causing the pulling motion to become heavy and stiff, which will also accelerate wear over time.

It is recommended to develop a simple maintenance habit: regularly wipe the tracks, check the sliding path for any stuck foreign objects, and then apply a small amount of lubricant as needed. This will maintain smooth sliding and extend the overall service life.

Why Sun Chain Is the Right Choice for Quality Drawer Hardware

Sun Chain has focused on the design and manufacture of slides and hardware components since 1975, accumulating stable export experience and mass production capabilities. Furthermore, it is ISO 9001 certified, with consistent quality control standards for every batch of products. In terms of the manufacturing process, Sun Chain has introduced an MES management system to enable real-time tracking from production to inspection; at the same time, it is paired with a mold traceability mechanism so that if a problem occurs, it can be quickly traced back to the batch and process conditions, reducing quality discrepancies.

Before shipment, products undergo BIFMA-related durability and load tests to ensure stable sliding performance in actual usage scenarios, whether for furniture or industrial applications. Coupled with flexible production line configurations and one-stop procurement services, we can assist customers in bridging the gap between development and mass production more efficiently, balancing costs and delivery stability, and making the overall supply easier to manage.

Conclusion

After reading the above introduction, before installing top mount drawer slides, remember to first confirm the structural strength of the mounting surface and the actual load-bearing requirements of the drawer to avoid deformation or unstable operation due to insufficient support during subsequent use. If there are bulk procurement or commercial application needs, Sun Chain provides engineering support, such as structural design assistance, customized load solutions, and OEM project support. Contact us to discuss your project, making the process from design to mass production smoother.
