What Are Ball Bearing Slides? From Residential Use to Heavy Industry!

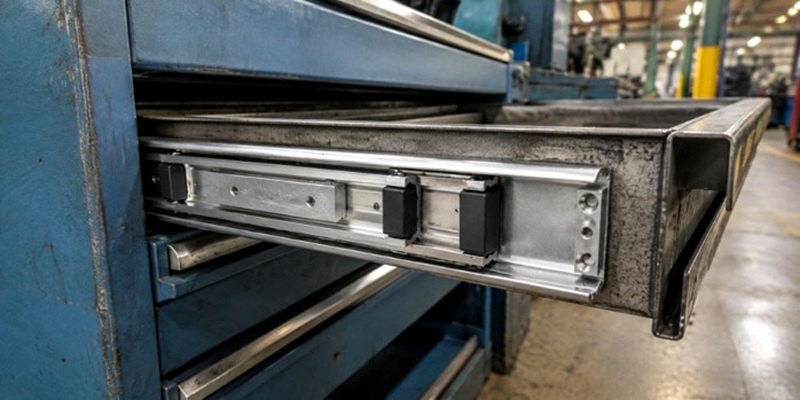

A ball bearing slide is a hardware accessory with built-in precision steel balls between the guide rails, enabling smooth movement as the balls roll along the tracks. It is not only used in residential furniture design, but is also widely used in industrial equipment, server racks, tool storage systems, vehicle applications, and automation-related cabinets. Ball bearing slides feature a stable structure and low frictional resistance, thus providing excellent load-bearing capacity and service life, with high durability and smooth operation.

The following content will introduce the main features, common styles, basic installation steps, and daily maintenance points of ball bearing slides to help you choose the most suitable slide product.

What Are Ball Bearing Slides?

The core design of ball bearing slides lies in the addition of steel balls between the tracks. When the drawer is pulled open or pushed closed, the steel balls reduce the friction between the tracks, providing a smooth and quiet operating experience. Depending on the model, structure, installation method, slide length, and conditions, the load-bearing range can extend from residential-grade applications to heavy-duty industrial use, and some heavy-duty models also use reinforced cage structures. These features make them suitable for applications in kitchens, file cabinets, toolboxes, modified vehicles, and industrial equipment systems.

〈Extended Reading: Top Mount Drawer Slides: Design, Installation, and Maintenance Guide〉

What is the Difference Between Ball Bearing Slides and Roller Slides?

When choosing, ball bearing slides are often compared with traditional roller slides. Roller slides use plastic or nylon rollers to slide on metal tracks. They have a simple structure and a lower price, but their load-bearing capacity and service life are not as good as ball bearing slides. Ball bearing slides can provide stable support, and most have a full-extension function, allowing the drawer to be fully pulled out for easy access to items deep inside. If you need to store heavy items or frequently open and close drawers, it is recommended to prioritize ball bearing slides.

Ball Bearing Slides VS. Roller Slides

In terms of the three key indicators of load capacity, extension, and durability, ball bearing drawer slides are completely superior to roller slides, making them the absolute best choice for high-frequency use or heavy-duty scenarios.

Common Styles of Ball Bearing Slides

There are many styles of ball bearing slides on the market, which can be mainly classified into four main types by installation method and special function: side-mount, undermount, soft-close, and full-extension slides. However, not all undermount slides use a ball bearing slide design; some products use a roller slide structure instead of steel ball bearings. Therefore, when purchasing, you should confirm whether the internal structure meets your load-bearing and smoothness requirements.

1. Side-Mount Slides: Installed directly on both sides of the drawer, these are the most common and have the most stable load-bearing capacity.
2. Undermount Slides: Installed at the bottom of the drawer, hiding the hardware for a cleaner visual appearance.
3. Soft-Close Slides: Features a built-in damping device that automatically slows down when closing the drawer to avoid impact noise, which also helps reduce long-term impact stress on the cabinet structure.
4. Full-Extension Slides: Divided into a three-section structure, it allows the drawer to be fully pulled out of the cabinet for easy access to items and is commonly used in storage systems requiring full access visibility.

Choose Sun Chain for Premium Ball Bearing Slides! Wide Variety, Highly Durable!

For environments requiring high load-bearing capacity and high reliability, Sun Chain offers a variety of professional-grade heavy-duty ball bearing slides. The following four models are recommended.

〈Extended Reading: How Locking Drawer Slides Improve Safety in Industrial Systems〉

Ball Bearing Slides of Sun Chain: L56110

L56110 is a 56mm wide heavy-duty ball bearing slide with a maximum load capacity of up to 80kg, specifically designed for applications requiring heavier drawers or equipment. This slide features a steel ball rolling structure, providing smooth extension and low-friction operation; the reinforced shell and guide rails enhance durability and resistance to deformation. L56110 is particularly suitable for toolboxes, ambulance/maintenance vehicle storage, heavy-duty office or industrial drawers, and other environments, maintaining stable performance under frequent opening/closing or high-load conditions.

〈Product Recommendation: Sun Chain L56110〉

Ball Bearing Slides of Sun Chain: L52177

L52177 is a 52mm wide soft-close ball bearing slide, combining stable structure with smooth sliding performance. This ball bearing slide features a mechanism that eliminates impact noise, extends service life, protects internal contents, and provides anti-pinching safety while enhancing the premium user experience. It is designed for high-frequency opening and closing, making it particularly suitable for kitchen hardware, medical and precision instruments, premium custom furniture, and industrial and automation equipment, maintaining durability and reliability in harsh environments.

〈Product Recommendation: Sun Chain L52177〉

Ball Bearing Slides of Sun Chain: L53110D

L53110D is a 53mm heavy-duty ball bearing slide that can withstand weights up to 120kg, suitable for usage scenarios requiring stronger support. The design emphasizes stability, durability, and smooth sliding, effectively improving the efficiency of drawers or mechanical equipment. It is commonly found in heavy-duty tool cabinets, industrial machines, special vehicle storage, and heavy-load environments with high-frequency opening and closing.

〈Product Recommendation: Sun Chain L53110D〉

Ball Bearing Slides of Sun Chain: UD754

UD754 is a 75mm wide extra heavy-duty ball bearing slide with a load capacity of up to 200kg, specifically designed for high load and long stroke requirements. This type of ball bearing slide emphasizes rigidity and stability in its structure while maintaining smooth sliding. It is suitable for applications in industrial equipment, heavy-duty drawers, and vehicle storage systems in harsh environments with extremely high load-bearing requirements.

〈Product Recommendation: Sun Chain UD754〉

How to Install Ball Bearing Slides? 3 Tips to Show You

To ensure ball bearing slides push and pull smoothly with high durability, you must follow the correct steps for installation. By mastering the following 3 installation tips, you can easily complete the positioning, allowing the drawer to open and close smoothly without jamming.

Step 1. Check Rail Alignment Before Installation

When installing ball bearing slides with eco-friendly surface coatings, be sure to first confirm that the heights on both sides of the track are consistent to avoid misalignment or rough sliding after installation. When tightening screws, you should also control the force to keep it moderate; do not apply excessive force to avoid scratching the surface coating, which affects appearance and durability.

Step 2. Side Mounted Ball Bearing Slides

When installing side-mounted ball bearing slides, proper clearance must be reserved between the sides of the drawer and the cabinet body. If the gap is too small, jamming will occur; if the gap is too large, it may cause the steel balls to fall out. When measuring and drilling, you must also maintain a level position so that the slides on both sides can share the load evenly.

Step 3. Bottom Mounted Ball Bearing Slides

Undermount slides require extremely high precision in drawer dimensions; the drawer depth must perfectly match the slide length. When installing ball bearing slides, it is necessary to ensure the drawer bottom panel has sufficient thickness for securing screws, and the slides on both sides must be perfectly parallel, otherwise the tightness and smoothness of the drawer when closing will be affected.

Maintenance Tips for Ball Bearing Slides

Regular maintenance of ball bearing slides can extend their service life and prevent abnormal noise. Normally, just use a clean cloth to wipe away dust on the track surface. If you find that sliding is not smooth, you can apply a small amount of grease to the ball area, though over-lubrication may attract dust and reduce smoothness. Do not use cleaners containing strong acids or alkalis to clean the slides, as this may damage the anti-rust coating on the metal surface.

Ball Bearing Slides Q&A!

Q1. How to Adjust Ball Bearing Slides?

If you find that the drawer is uneven or jams slightly after completing the installation of ball bearing slides, do not force it open by pulling hard. You can slightly loosen the fixing screws on the outer rail on the side of the cabinet, then finely adjust the position of the outer rail up or down. After confirming that the drawer has reached a perfectly level position and can be pushed in and pulled out smoothly, tighten all fixing screws to complete the adjustment.

Q2. How to Put a Ball Bearing Slide Back Together?

First, fully pull out the middle rail inside the cabinet. Lift the drawer, accurately align the inner rails on both sides of the drawer with the middle rails on the cabinet, and push inward horizontally. If you feel significant resistance from the ball bearing slide during the pushing process, you need to stop immediately and realign to avoid damaging the steel balls by forcing it.

Q3. What is the Best Lubricant for Ball Bearing Drawer Slides?

The best options are lithium grease or lubricants specifically designed for linear guides. For daily maintenance, simply apply a thin layer where the balls contact the track. Over-lubrication can easily attract dust and metal particles, affecting the smoothness of the slide; therefore, it is better to periodically wipe off old oil before reapplying new lubricant.

Conclusion

Choosing the right ball bearing slide can enhance the durability and operational feel of your equipment. By understanding the load limits of different styles, while considering environmental factors such as humidity and vibration, mastering the correct installation clearance, and performing regular cleaning and lubrication maintenance, you can keep the slides smooth for a long time. Sun Chain provides a full range of sturdy and durable ball bearing slides, and offers professional OEM/ODM manufacturing services. If you have any custom specifications or large-scale slide requirements, please contact us, and we will provide a solution that best fits your budget and equipment standards.
