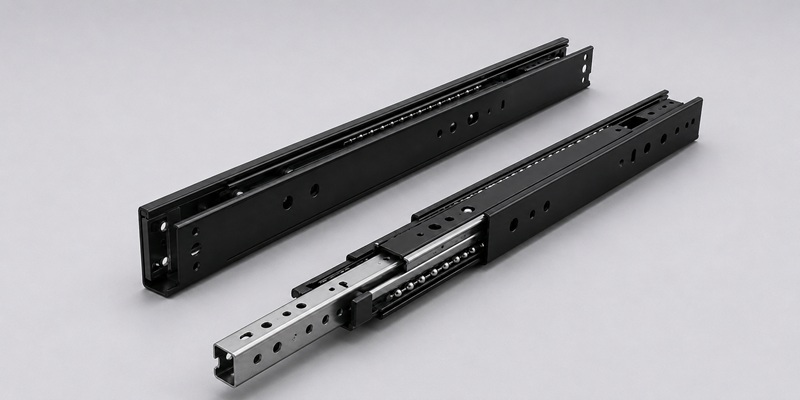

The Ultimate Guide to Heavy-Duty Drawer Slides: Engineering Strength for High-Capacity Needs

Heavy-Duty Drawer Slides refer to industrial-grade slides typically ranging from 100kg class applications to ultra-heavy-duty specifications, commonly used in high-load applications such as tool cabinets, mechanical equipment, and large storage systems. This article will guide you through clarifying the characteristics and applications of these industrial-grade Heavy-Duty Drawer Slides and help you find the most reliable Heavy-Duty Drawer Slides manufacturer.

Understanding Load Capacity of Heavy-Duty Drawer Slides

The load capacity of Heavy-Duty Drawer Slides depends on the material and internal structure. Slide bodies primarily made of cold rolled steel inherently possess high rigidity and resistance to deformation. Certain high-load structural components may utilize higher-strength steel materials or reinforced structural designs. When paired with appropriate ball sizes and high-hardness steel balls, the overall load limit can be effectively increased.

Furthermore, static load is the maximum weight when the drawer is closed and stationary, while dynamic load is the weight it can withstand during sliding; both values influence the selection for various industrial applications.

High-demand Applications for Heavy-Duty Drawer Slides

Heavy-Duty Drawer Slides are indispensable across a wide range of demanding applications, from data center server racks and energy storage battery cabinets to commercial vehicle equipment, train control cabinets, and industrial cabinets for fire trucks and military vehicles. In modern energy storage systems and battery rack applications, these slides play a critical role in supporting immense weight while facilitating seamless slide-out maintenance for high-density battery modules.

Whether operating in bumpy and vibrating transportation environments that demand exceptional vibration resistance, or in stationary facilities requiring stable, high-load support for frequent maintenance access, these slides must meet stringent performance standards. Consequently, high-quality design and robust structure are essential to ensure long service life, reliable accessibility, and operational safety in any setting.

Specialized Solutions for Commercial Vehicle Equipment

Industrial-grade vehicles, including service trucks, overlanding vehicles, and mobile maintenance systems, frequently encounter severe shock and vibration during travel. In these demanding environments, the true challenge is not merely bearing static weight, but withstanding shock loading, repeated impacts, and long-term dynamic stress. Without stable support, onboard equipment can easily loosen or become damaged. Heavy-Duty Drawer Slides allow tools, instruments, or spare parts to be firmly fixed in place while moving, while still maintaining smooth sliding. In addition to stabilizing equipment, features such as a lock-in / lock-out mechanism make access more convenient, enhancing work safety and operational efficiency.

Rail Control Cabinets and Industrial Systems

Train control cabinets and large industrial cabinets have very high requirements for stability and precision; any shift or shaking of internal components can easily affect operation. In such high-load environments, Heavy-Duty Drawer Slides must not only support heavy weights but also maintain extremely low frictional resistance during long-term operation to meet the strict standards of industrial and railway systems.

Corrosion Strategies for Heavy-Duty Drawer Slides

No matter how strong the design of a heavy duty drawer slide is, if surface rust prevention is not handled well, the steel will easily corrode in long-term humid or high-temperature environments. This corrosion not only affects appearance, but may also impact smooth sliding performance and structural reliability. Furthermore, it will affect the strength and lifespan of the load-bearing structure, potentially leading to slide deformation or jamming, which poses safety risks.

〈Extended Reading: How Locking Drawer Slides Improve Safety in Industrial Systems〉

Zinc Plating vs. Electrophoresis in Industrial Use

In heavy-load environments, zinc plating and electrophoresis each have their own advantages. In general dry factory environments, zinc plating provides basic rust protection; however, in areas with high humidity, salt spray, or frequent contact with oil and grease, the dense coating of electrophoresis treatment is more effective at delaying corrosion and protecting the structural integrity of the Heavy-Duty Drawer Slides.

Comparison Table of Zinc Plating and Electrophoresis Materials for Heavy-Duty Drawer Slides

Surface Treatments for Transportation and Marine Use

In high salt spray environments such as commercial vehicle chassis or coastal rail systems, Heavy-Duty Drawer Slides can easily rust through over time if only standard zinc plating is used. Adding special anti-rust coatings or sealants after zinc plating can significantly extend equipment life and reduce replacement frequency. To ensure reliable durability, Sun Chain salt spray resistance performance can vary depending on coating specification, environment, and application conditions. Currently, standard zinc plating can withstand at least 72 hours without red rust in neutral salt spray tests (ASTM B117/ISO 9227 Grade 9 evaluation), while zinc plating with sealant can significantly improve salt spray resistance performance depending on coating specification and environment.

Specific Surface Treatment Options and Validation

To meet diverse environmental demands, several specific surface treatments are available. RoHS-compliant trivalent zinc plating offers an environmentally friendly alternative with excellent corrosion resistance, while black zinc provides similar protection with a distinct black finish, often preferred for aesthetic or low-reflection requirements. For environments demanding superior resilience, electrophoretic black coating (e-coating) delivers a highly uniform, dense, and durable protective layer that significantly extends the lifespan of the slides.

Installation Standards for Heavy-Duty Drawer Slides

For Heavy-Duty Drawer Slides to achieve their maximum load capacity, the drawer must be perfectly aligned with the cabinet during installation, maintaining precise vertical and horizontal alignment. Crucially, overall slide performance is directly affected by cabinet rigidity, mounting surface flatness, and strict installation tolerances. Achieving these ideal conditions fundamentally depends on the accuracy of the metal stamping and forming processes during manufacturing. Even a slight tilt or uneven mounting surface will shift the weight to one side, causing the slides to endure destructive lateral stress and uneven ball bearing pressure, quickly leading to jamming, wear, or deformation.

Avoiding Lateral Stress and Misalignment Issues

Any slight error during installation will shift the weight to one side of the slide, resulting in uneven load distribution and ball bearing pressure, which leads to jamming, wear, and deformation over time. Precise installation ensures the slides are firmly aligned with the drawer and cabinet, allowing the load to fall smoothly on the center of the tracks. This not only ensures smoother operation but also extends the lifespan of the slides, truly demonstrating the strength of Heavy-Duty Drawer Slides.

Maintenance: Monitoring Wear in Heavy-Duty Drawer Slides

After long-term use of Heavy-Duty Drawer Slides, it is necessary to monitor for ball bearing wear, track deformation, or scratches. Metal debris, dust, or lack of lubrication may accelerate wear and affect smooth travel. Under high-frequency use, signs such as sluggish sliding, abnormal noises, or obvious drawer wobbling may indicate slide damage. Regularly inspecting these areas and identifying problems early for replacement or adjustment can prevent sudden jamming or detachment under heavy loads, reducing the risk of accidents

〈Extended Reading: Top Mount Drawer Slides: Design, Installation, and Maintenance Guide〉

Why Sun Chain is Your Trusted Partner for Heavy-Duty Drawer Slides

Sun Chain has accumulated over 50 years of reputation and brand spirit, establishing a stable professional image in the industrial slide field. Over this half-century, we haven't just made parts; we have transformed our accumulated experience into technical strength, making us highly competitive in the market. From tool cabinets and train equipment to special vehicles and industrial systems, Sun Chain provides solutions that withstand heavy loads and high-frequency operation based on actual needs, with experience supporting OEM and industrial equipment projects, making us a trusted partner for Heavy-Duty Drawer Slides in the industry.

〈Recommended Products: Heavy-Duty Drawer Slides〉

One-Stop Engineering for High-Capacity Solutions

Sun Chain provides one-stop services from R&D and design to manufacturing, specializing in high-difficulty, custom-specification Heavy-Duty Drawer Slides. From standard high-load to ultra-heavy-duty applications up to 500kg, we can adjust solutions to meet specific industrial equipment needs.

Sun Chain Trading's Heavy-Duty Drawer Slides feature exceptional load-bearing capacity. Since slide quality relies heavily on the precision of metal stamping and forming, we implement strict mold lifespan monitoring to ensure every track meets rigorous tolerance standards. Simultaneously, integrating the MES to monitor production parameters in real-time guarantees strict process consistency and establishes complete traceability throughout the manufacturing cycle. Improving batch-to-batch consistency and manufacturing traceability to meet the critical standards that clients care about most. This powerful combination effectively stabilizes our product yield. Ultimately, Sun Chain Trading's products deliver impeccable durability and reliability, even in the most demanding industrial environments.

primarily developed and manufactured in Taiwan

Heavy-Duty Drawer Slides are currently manufactured exclusively by Sun Chain in Taiwan, while the Vietnam base handles mass production and global supply for other related products. The Taiwan R&D center focuses on technical development and high-specification Heavy-Duty Drawer Slides design. By combining smart manufacturing with ISO-certified quality management, global buyers can obtain stable, reliable, and efficient Heavy-Duty Drawer Slides supply solutions.

Driving ESG in Heavy-Duty Drawer Slides Production

The production of Heavy-Duty Drawer Slides is also evolving with international sustainability trends. Sun Chain has planned a 2050 net-zero carbon emission path and implemented carbon footprint verification and related certifications. By optimizing manufacturing processes, energy conservation, and resource management, we transform eco-friendly processes into a tangible brand advantage, allowing buyers to build green supply chains that meet ESG standards when choosing Heavy-Duty Drawer Slides.

Conclusion

With correct installation and the right materials for the environment, Heavy-Duty Drawer Slides can perform their intended functions effectively. However, please note that actual load performance may vary depending on installation conditions and the application environment. If you are planning systems for tool cabinets, train equipment, or high-load industrial applications, feel free to contact Sun Chain. Let our professional team design the most stable and suitable Heavy-Duty Drawer Slides solution based on your actual industrial needs. providing expert engineering consultation and customized industrial project evaluation.
