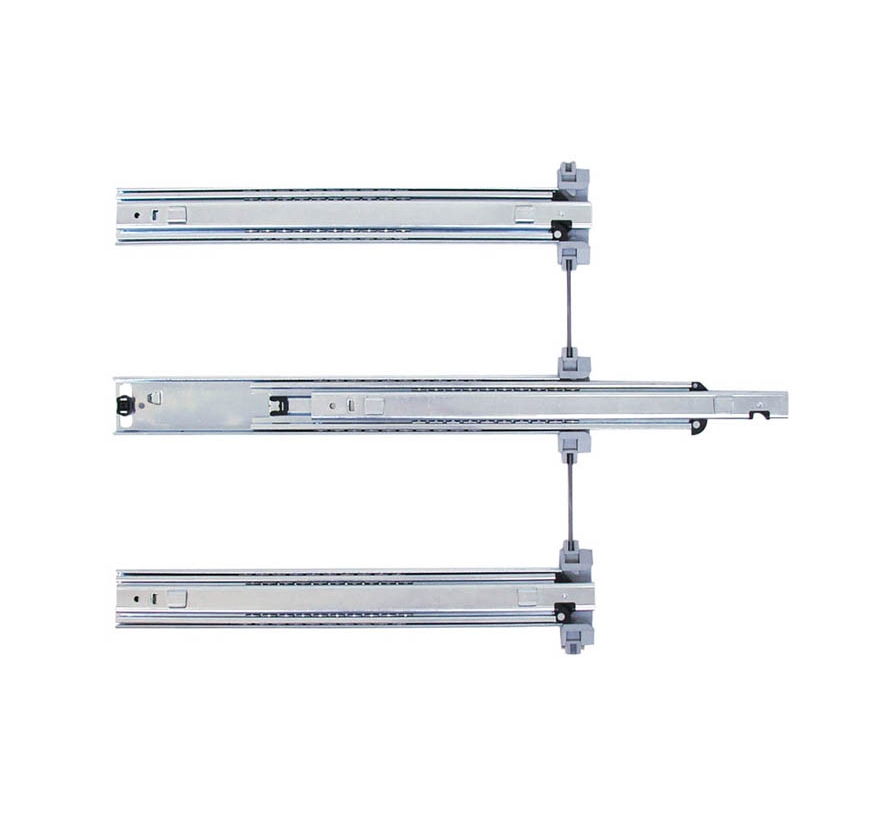

L56111-Y27

Specification: Load Capacity: 80 kg – 110 kg (Tested for 100,000 and 10,000 cycles respectively); Installation Space: 19.1 mm (+0.4 / -0 mm); Length Range: 400 mm – 600 mm (Standard lengths); Slide Height: 56 mm; Interlock System: Integrated Front Interlock and Central-lock system; limits access to only one drawer at a time to prevent cabinet tilting; Lock Travel: Interlock and Central-lock travel of 10 mm; Safety Mechanism: Built-in hold-in mechanism prevents rebound and accidental opening; Configuration: Supports up to 6 drawers with a maximum drawer width of 1000 mm; Mounting: Standard mounting bayonets for efficient installation; Compliance: Meets DIN 4548, EN 15338, and BIFMA standards
