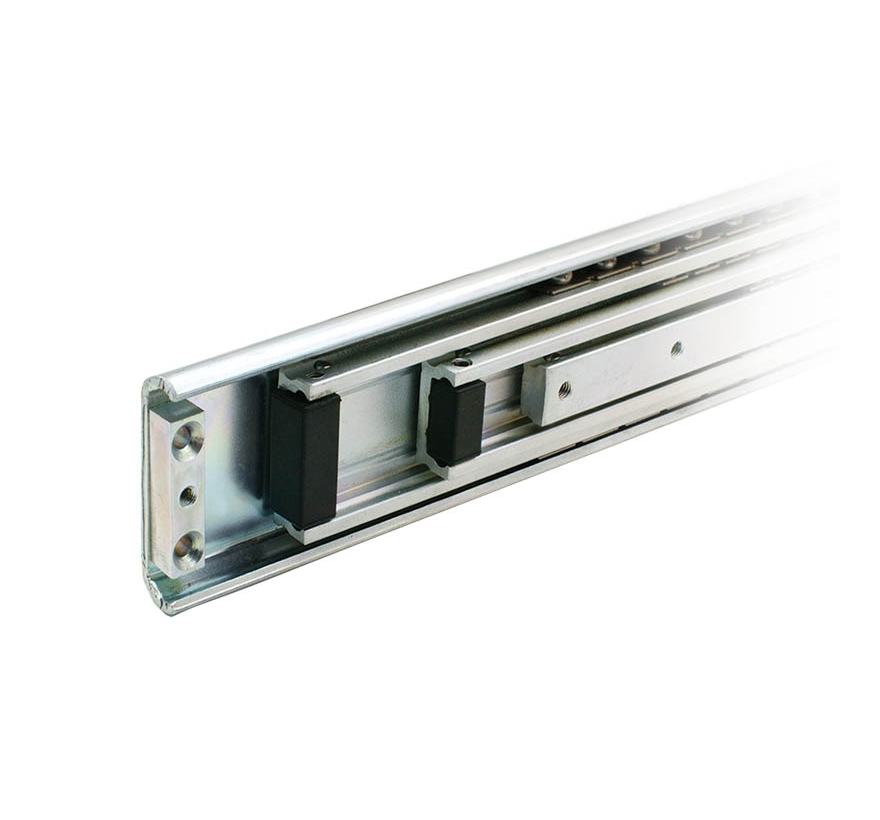

UD754

Specification: Load Capacity: 200 kg; Extension: 150% Ultra Extension (e.g., 1000 mm slide length provides 1500 mm travel); Installation Space: 32 mm (\pm 0.4 mm); Length Range: 300 mm – 1000 mm; Slide Height: 75 mm; Material & Finish: Super heavy-duty steel with Yellow Zinc Plating (Environmental Yellow); Mounting Hardware: Compatible with 1/4"" (M6) or #10 (M5) 90° flat head screws; Award: Winner of Taiwan Excellence 2015
