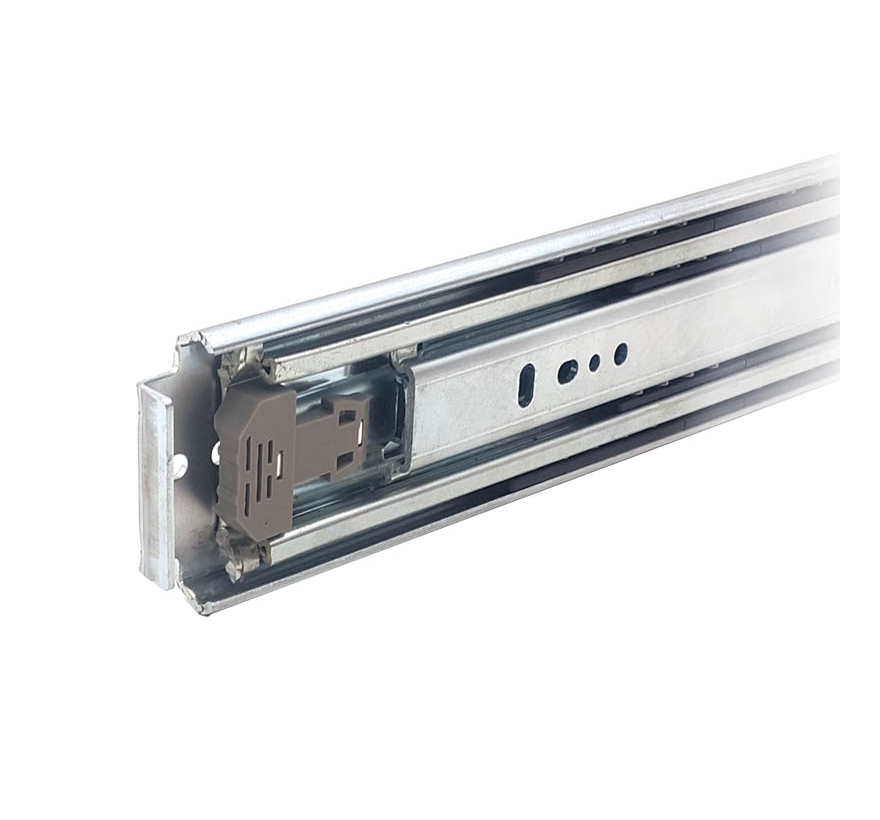

L76120

Specification: Load Capacity: Up to 300 kg (660 lbs); Installation Space: 19.1 mm (+0.4 / -0 mm); Length Range: 10"" (254 mm) – 60"" (1524 mm); Slide Height: 76.2 mm; Extension: Full Extension (100%); Durability: Tested for 10,000 cycles at max load; supports 50,000 cycles under 66% load; Vibration Resistance: Certified by IEC 60068-2-64 Standard for ground vehicle installations; Finish: RoHS compliant Zinc Plated (Cr3+); up to 500 hours salt spray test available by request; Mounting: Side-mounting; optional accessory platform brackets available for bottom-mount
