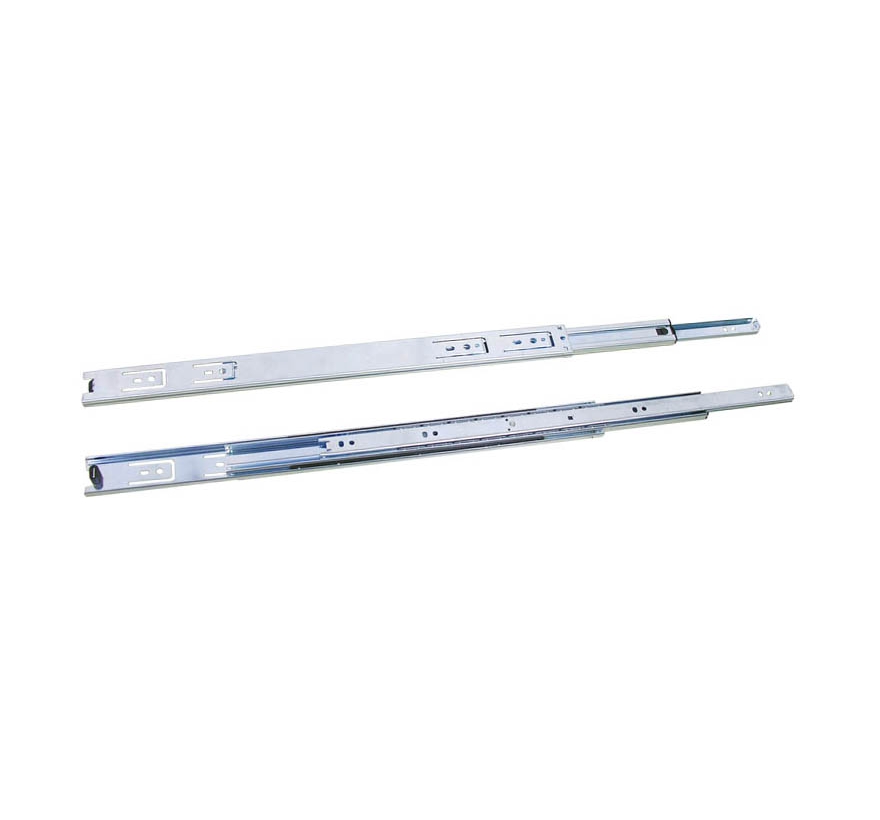

Tool box drawer slides

L35192

Specification
Load Capacity: 35 kg
Installation Space: 12.7 mm (+0.8 / -0 mm)
Slide Height: 36 mm
Length Range: 250 mm - 600 mm
Extension: Full Extension
Material Thickness: 1.2 mm
Features:
 ‧ Detent-in: Securely keeps the drawer in the closed position
 ‧ Latch Disconnect: Allows for easy drawer removal
 ‧ 32mm System Hole: Standardized pitch for easy mounting
Durability: Tested for 50,000 cycles
Finish Options: Zinc Plated or Environmental Blue

Description

  • Tool box drawer systems
  • Professional storage organizers
  • General workshop cabinetry
Added to Inquiry list.
Finish
ZP(Zinc Plating)
Customization available.
