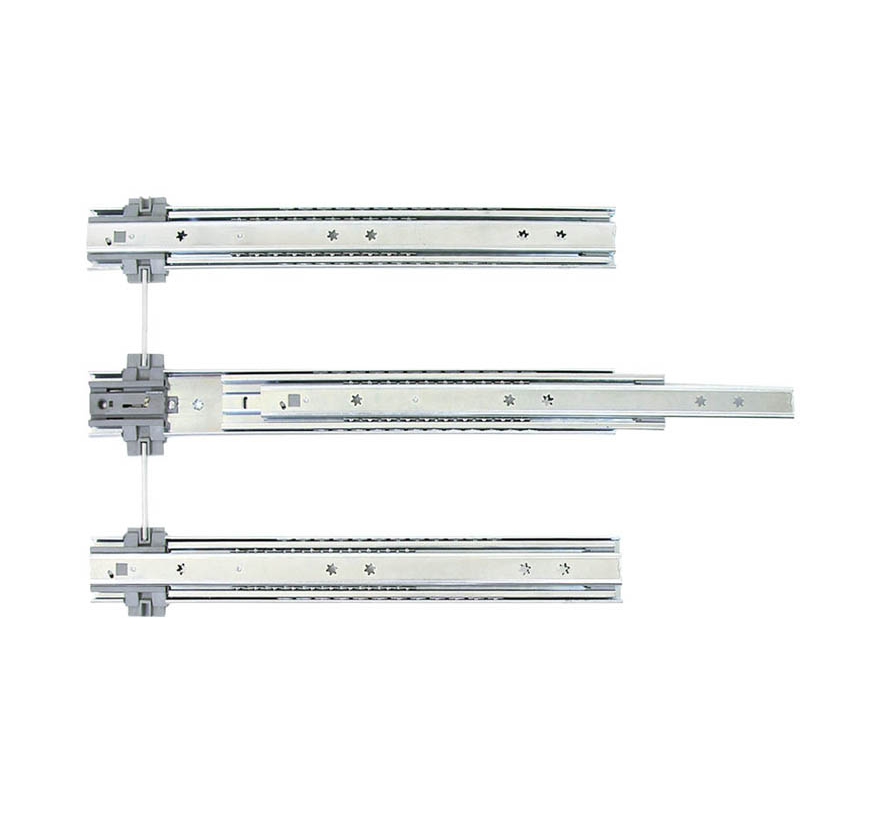

L56182

Specification: Load Capacity: 80 kg – 110 kg (Supports 100,000 and 10,000 cycles respectively); Installation Space: 19.1 mm (+0.4 / -0 mm); Length Range: 400 mm – 700 mm (Standard lengths up to 1000 mm optional); Slide Height: 56 mm; Interlock System: Integrated rear interlock and central-lock system; limits access to only one drawer at a time to avoid cabinet tilting; Lock Travel: Interlock and central-lock travel of 9 mm; Self-Closing: Built-in self-closing mechanism prevents accidental opening and rebound; Configuration: Supports up to 6 drawers with a maximum drawer width of 1000 mm; Disconnect: Lever disconnect for easy drawer removal; Hole Pattern: Standard 32 mm system hole pitch; Compliance: Meets DIN 4548, EN 15338, and BIFMA standards
